Versatile, powerful, and easy to integrate.

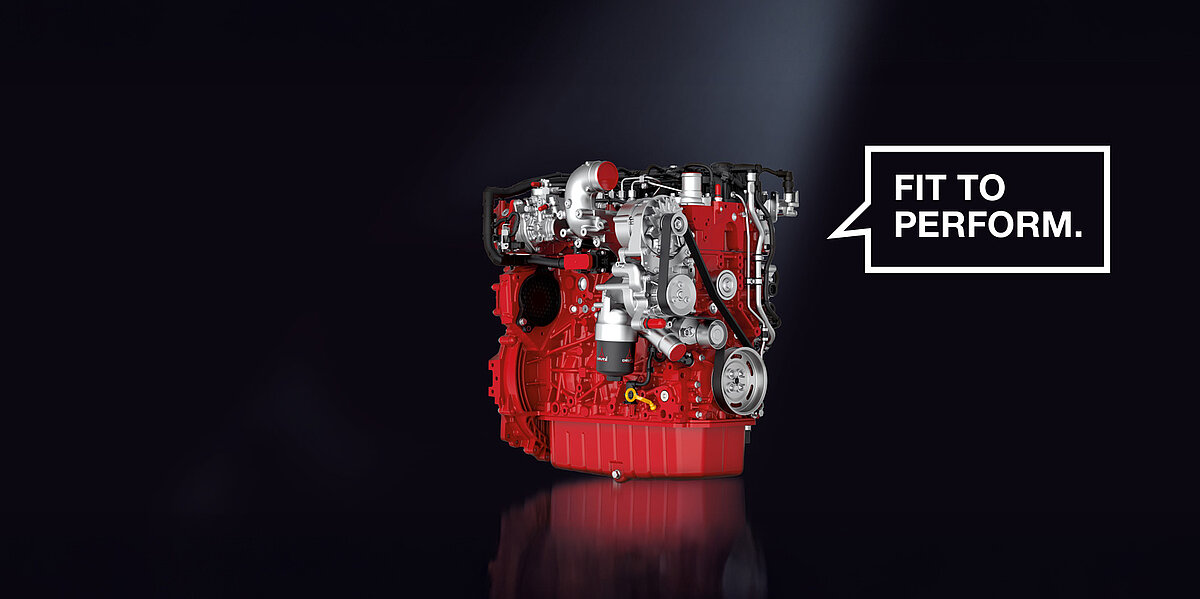

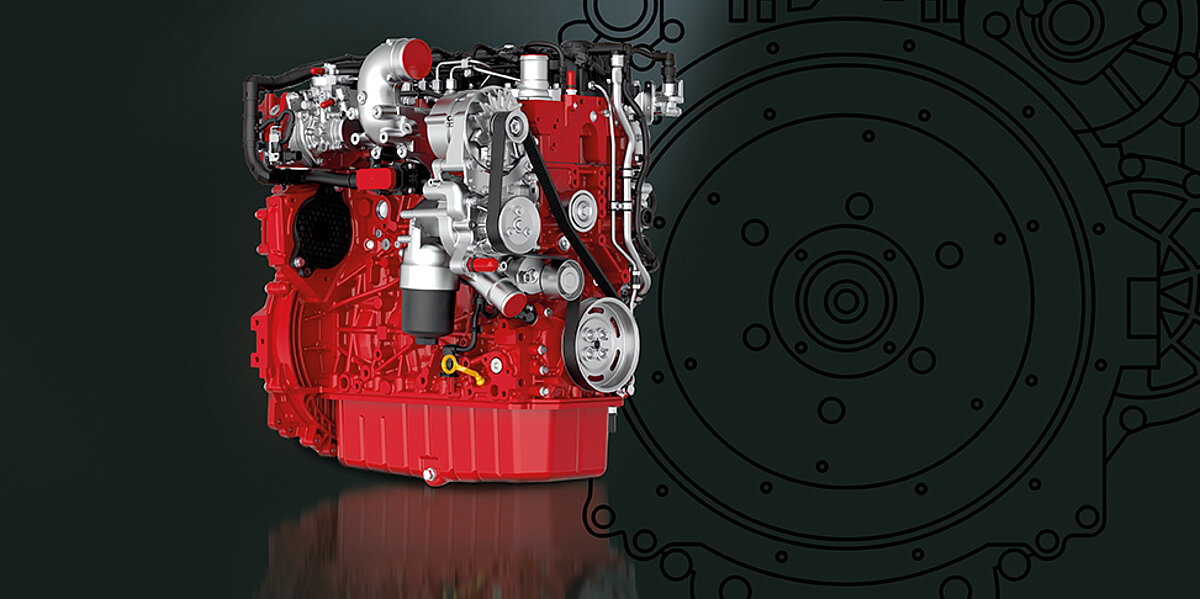

DEUTZ
TCD 3.9 / 4.0

The DEUTZ TCD 3.9/4.0 combines outstanding performance with a compact and future-proof design. The water-cooled 4-cylinder in-line engine with turbocharger can be flexibly configured and perfectly adapted to the requirements of a wide range of applications.

POWERFUL

FIT FOR YOUR APPLICATION

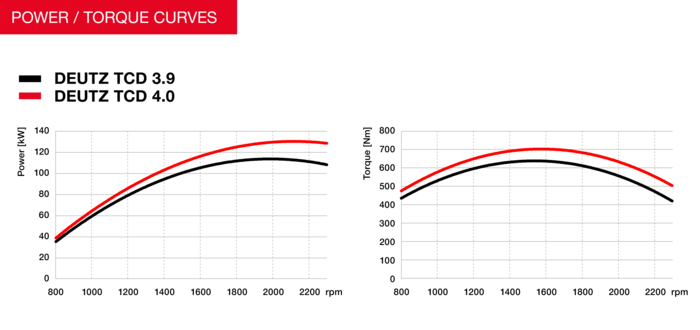

More power than a 4.1-liter engine in the compact size of a 3.6-liter model: The TCD 3.9/4.0 offers a wide power range with two variants (75–110 kW & 110–130 kW). It also delivers high efficiency and performance in continuous operation under full load – perfectly suited for many applications.

MODULAR

FIT FOR YOUR INSTALLATION

Thanks to its flexible configurability, the TCD 3.9/4.0 can be optimally integrated into modern machine concepts. From the variable engine design to the compact power pack with integrated cooling and exhaust aftertreatment, everything has been tested, is ready for installation, and is designed for maximum reliability with minimum effort.

RELIABLE

FIT FOR DAILY USE

Developed in Germany and manufactured to the highest quality standards, the TCD 3.9/4.0 stands for reliability and durability – day after day. Long oil change intervals (up to 1000 hours) and maintenance-free valves and belt drive reduce operating costs and increase availability. Global DEUTZ service and worldwide spare parts supply ensure maximum availability.

At a glance:

Water-cooled 4-cylinder in-line engine with turbocharger

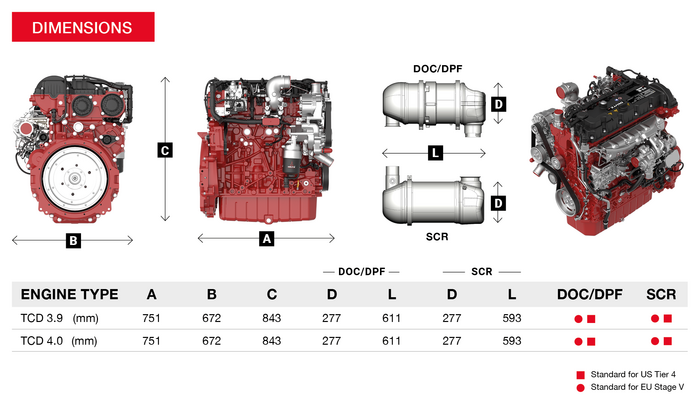

Compact size and wide power range from 75 to 130 kW
Modular, wide range of applications thanks to numerous options
Meets EU Stage V/US EPA Tier 4 requirements with DVERT®
Also available without EAT for Stage IIIA/less regulated markets

QUIET

FIT FOR MAXIMUM COMFORT

Consistent NVH optimizations ensure quiet operation and a noticeably more pleasant working environment – for greater comfort during operation and use, even under demanding conditions.

LOW EMISSIONS

FIT FOR THE FUTURE

Certified to EU Stage V and US Tier 4 with DVERT®, selective catalytic reduction (SCR), and diesel particulate filter (DPF). The low-emission engine platform can also be easily extended to other fuels (ReFuels, H2, etc.) and is suitable for HVO operation.

COMPACT

FIT FOR SIMPLE COOLING

The TCD3.9/4.0 is designed without exhaust gas recirculation (EGR), which simplifies the engine architecture. Low maintenance and low cooling requirements reduce peripheral engine costs and ensure more reliable engine performance.

“More power in less space – an engine system that sets new standards for construction, mining, material handling, and many other applications. Flexible, powerful, future-oriented.”

^{Frank Bürschgens}
^{Head of Portfolio & Product Management, Business Unit Engines, DEUTZ AG}

Watch the video

"Innovative and in a compact design: The TCD 3.9 / 4.0 delivers continuous full power with consistently high torque – advanced engineering performance at the highest level.“

^{Frank Eisenhauer}
^{Technical Project Manager TCD 3.9/4.0, Business Unit Engines,}^{DEUTZ AG}

Watch the video

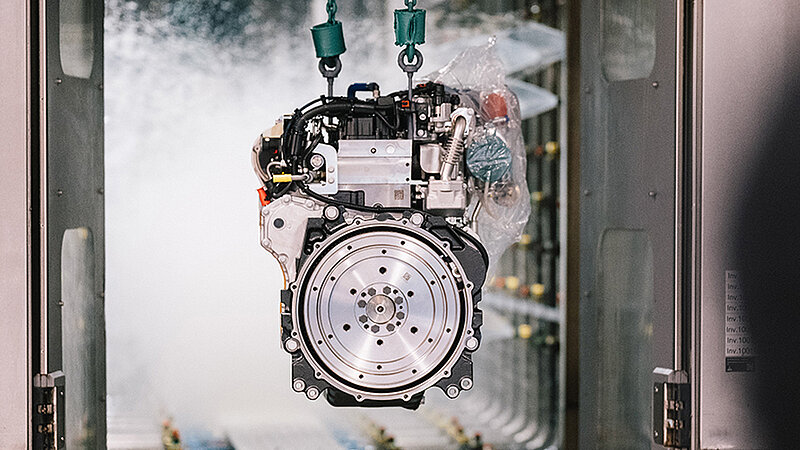

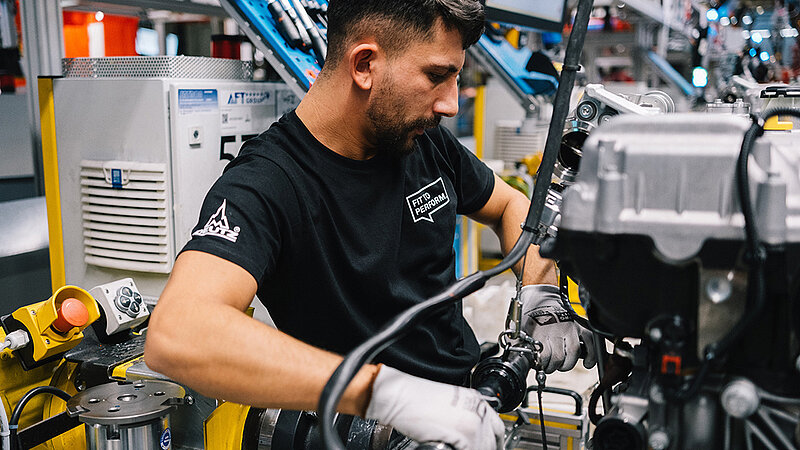

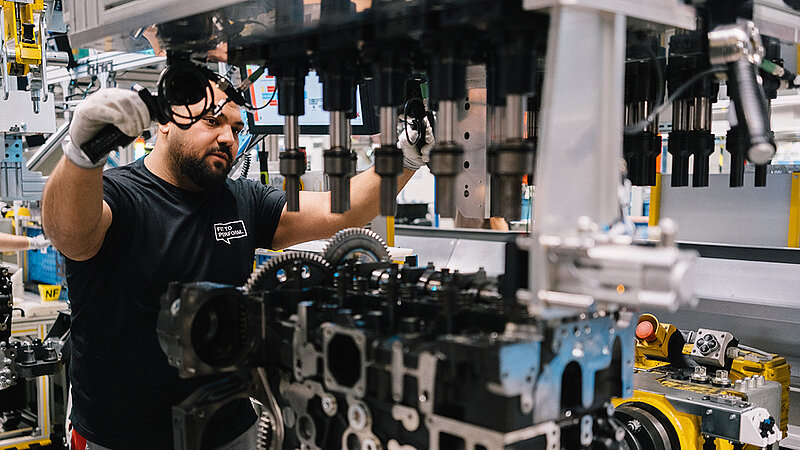

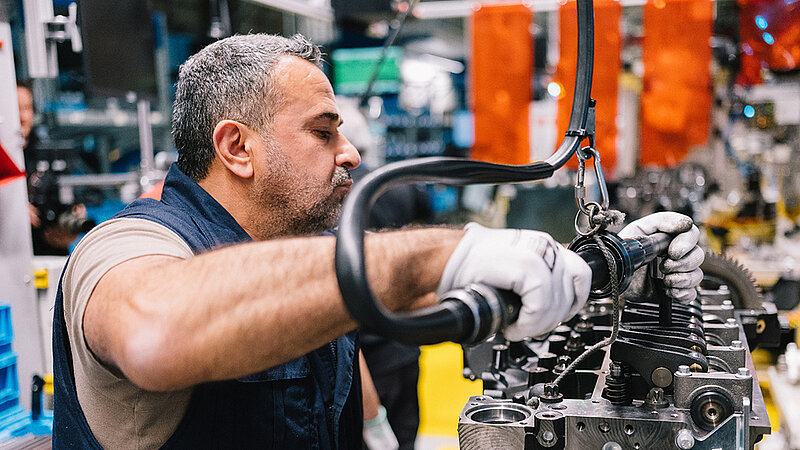

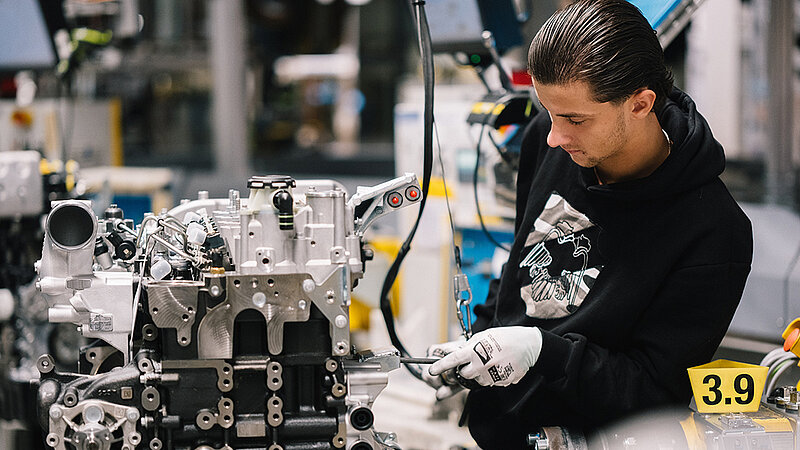

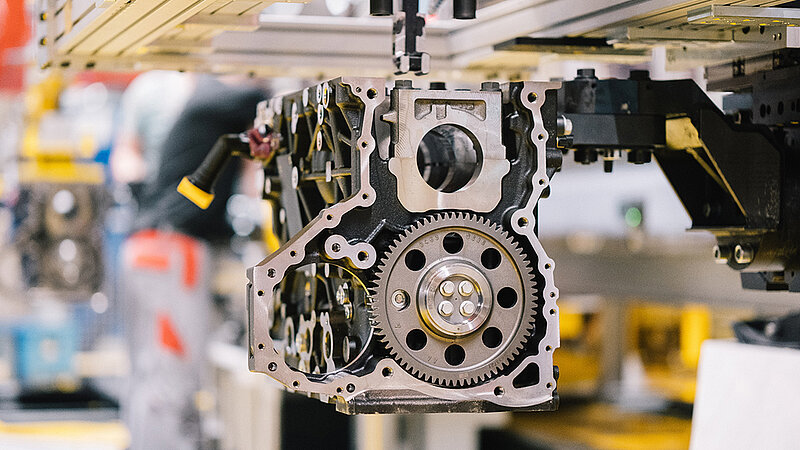

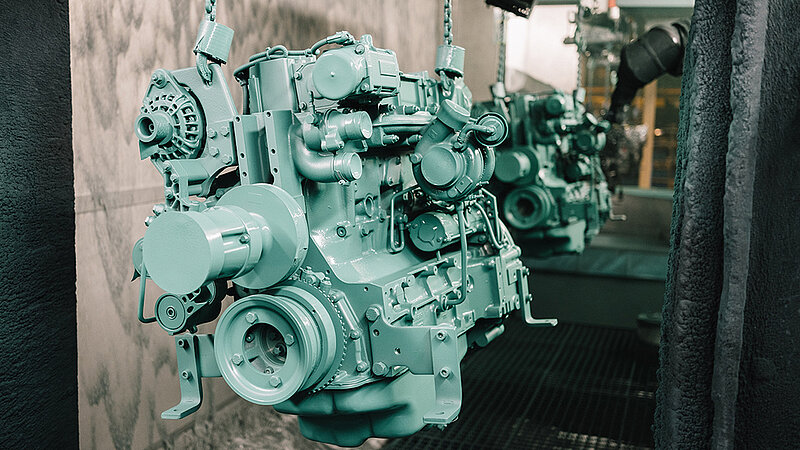

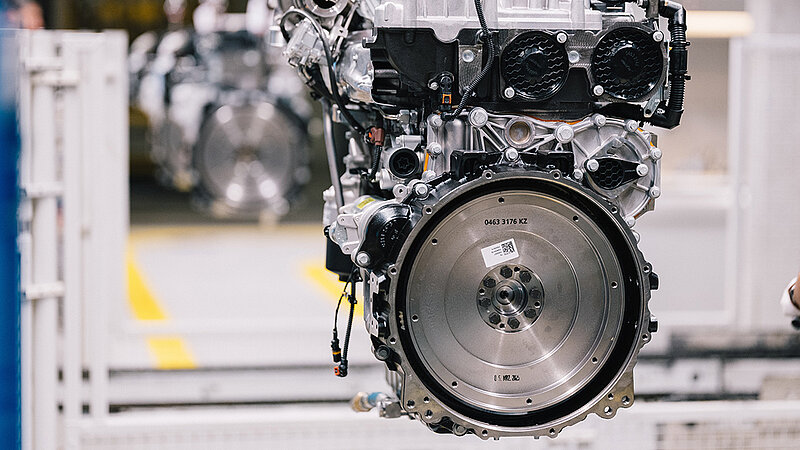

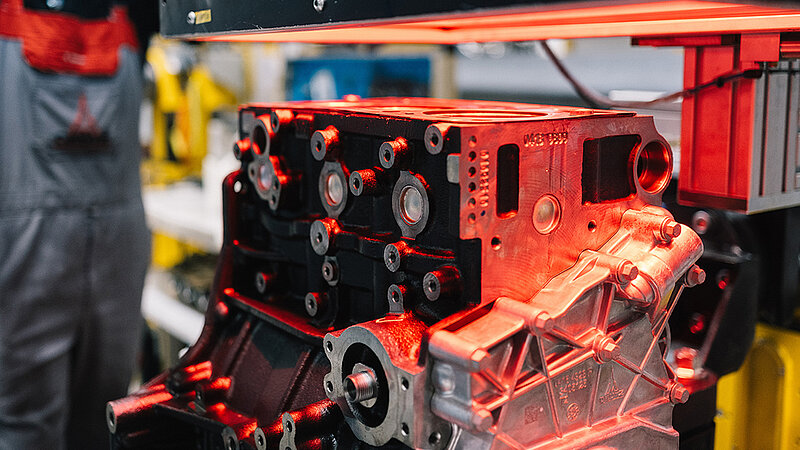

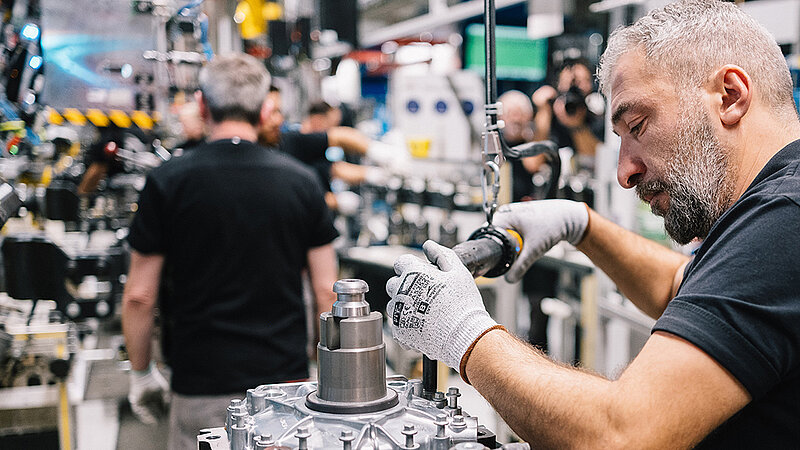

Made in Germany.

We manufacture the TCD 3.9/4.0 to the highest standards using state-of-the-art technology and expert craftsmanship.

Watch the video

Applications

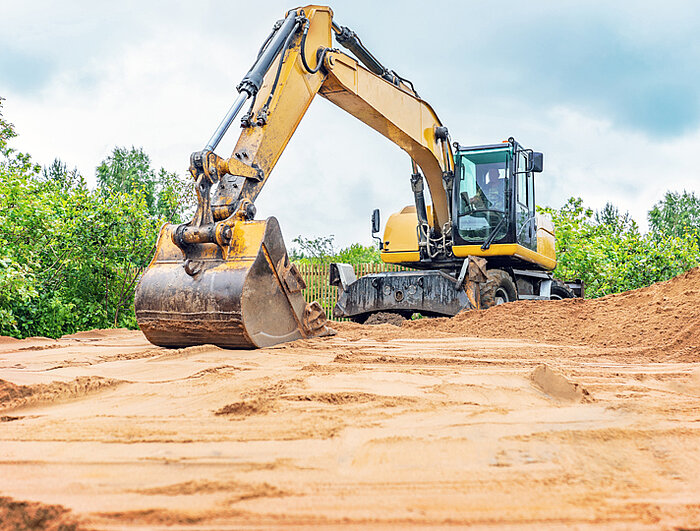

CONSTRUCTION

Uncompromising performance for the toughest applications – robust architecture, reliable in continuous operation, efficient, and cost-reducing.

MINING

Unique solutions for mining – flexibly adaptable and as versatile as the requirements underground and in open-cast mining.

MATERIAL HANDLING

Powerful, durable engines – maximum reliability with minimum effort, day after day.

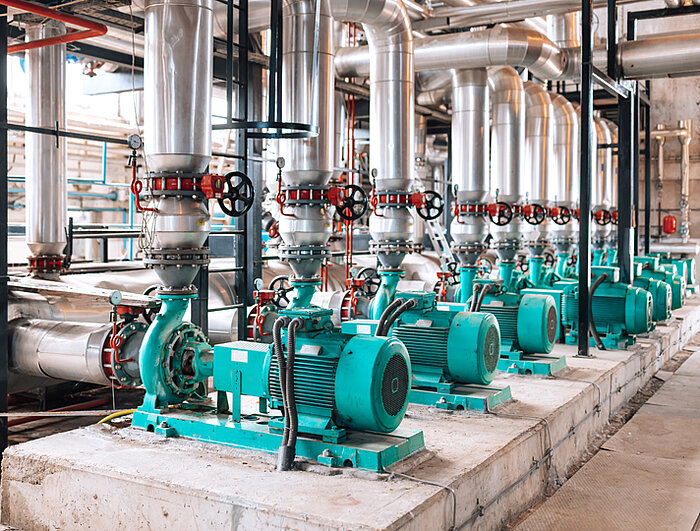

PUMP SYSTEMS

Reliable performance for critical applications – efficient, reliable, and robust even under extreme conditions.

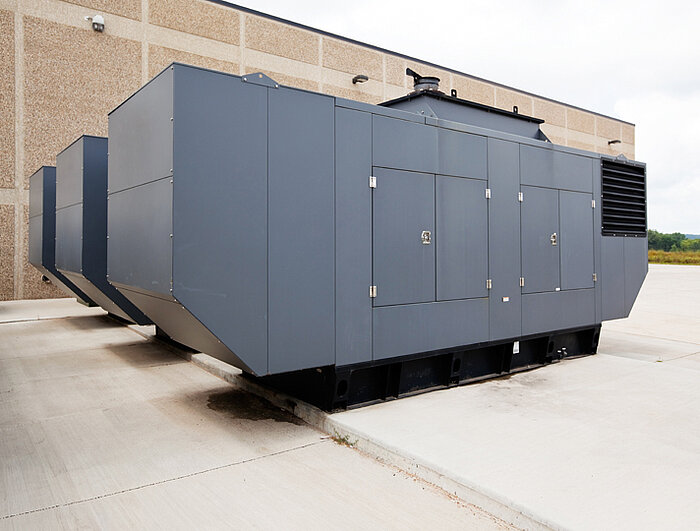

GENERATORS

Strong performance on demand – durable technology for stable energy and compressed air supply with low maintenance requirements.

AGRICULTURAL

Compact, robust drive solutions for specialized agricultural applications – efficient and reliable in continuous use.

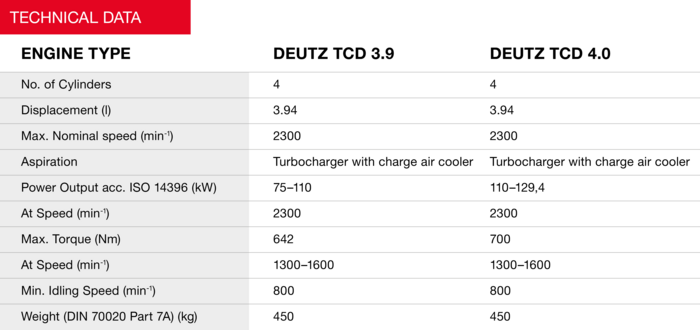

Data Sheet for Download

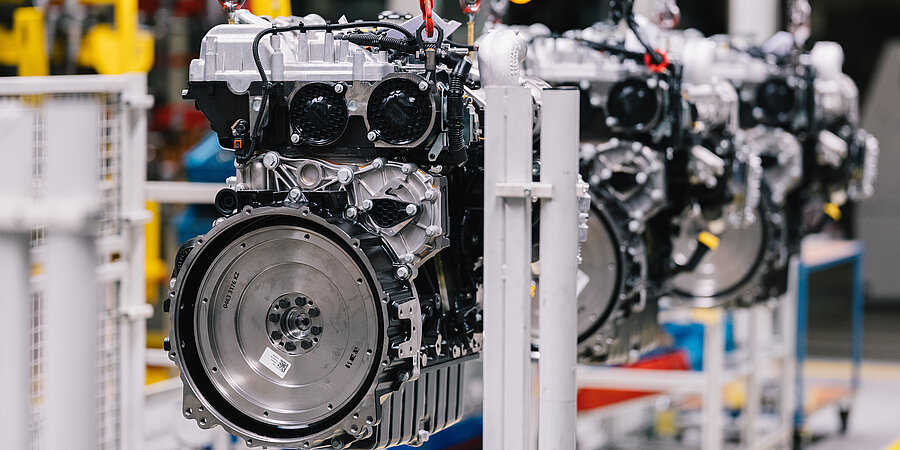

SERVICE THAT PROVIDES GLOBAL SECURITY.

With over 925 partners in more than 130 countries, the global DEUTZ sales and service network offers fast, reliable support. Competent service teams accompany you throughout the entire service life of the engine – from commissioning and maintenance to efficient spare parts supply.

Service Partner
